Application software

CAUTION
  • When linking these application software with actual HD Hyundai Robotics robots, please be fully familiar with the product usage instructions for safety reasons.
  • Please carefully check the settings and instructions before operating the robot, and be sure to follow the robot safety rules.
  • In addition, the software below is the property of HD Hyundai Robotics, and use, sale, and modification for any purpose other than support or education of HD Hyundai Robotics' robots is prohibited.

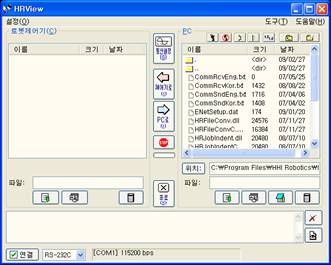

HRView​

This is PC software that allows various files within the robot controller to be transmitted and received from an external PC via serial or Ethernet.

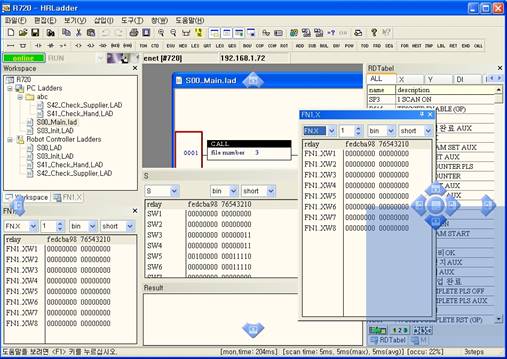

HRLadder​

This is PC software for editing and monitoring ladder work for the built-in PLC function of the robot controller.

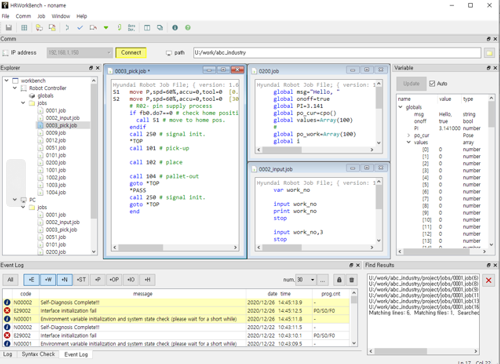

HRWorkbench​

This is PC software that allows you to manage, edit, and monitor various files within the Hi6 robot controller via Ethernet communication.

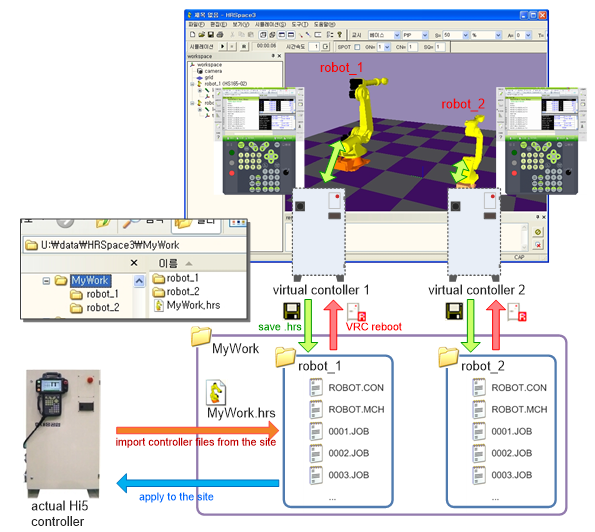

HRSpace​

This is PC-based OLP (Off-Line Programming) software. You can configure and simulate robot work in a 3D virtual space.

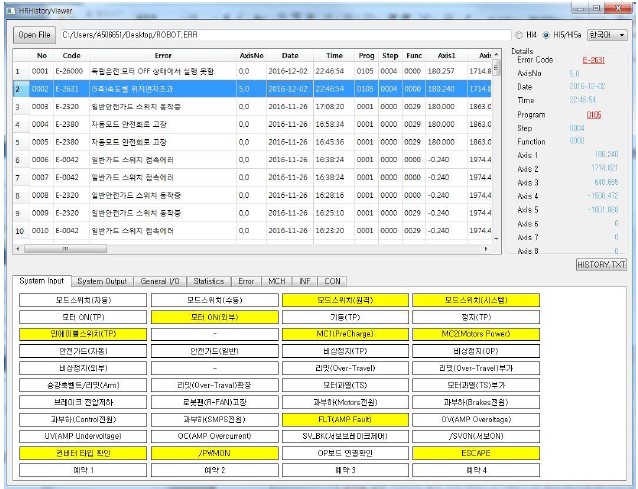

HRHistoryViewer​

This is utility PC software that allows users to easily view the robot's error and stop history files through an intuitive UI.

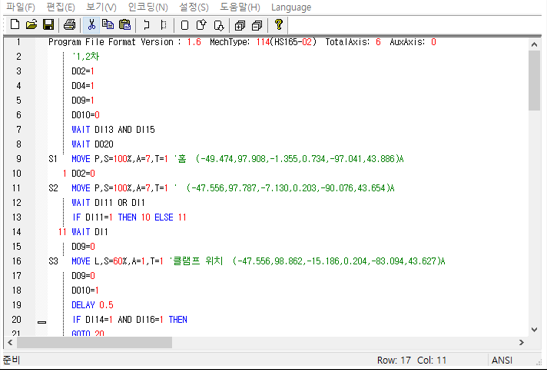

HRNotePad​

It is a light and fast editor optimized for Hyundai Robot JOB programs.

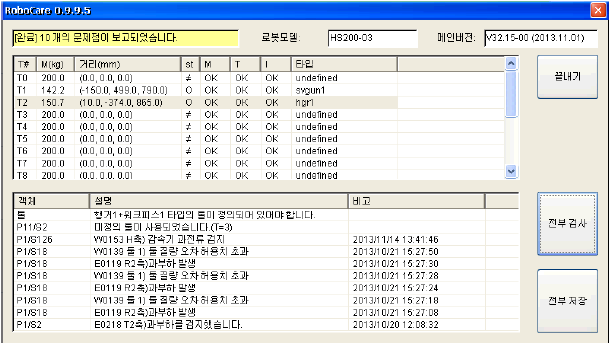

RoboCare​

This is a TP applet that automatically checks settings, teachings, and history related to robot life.

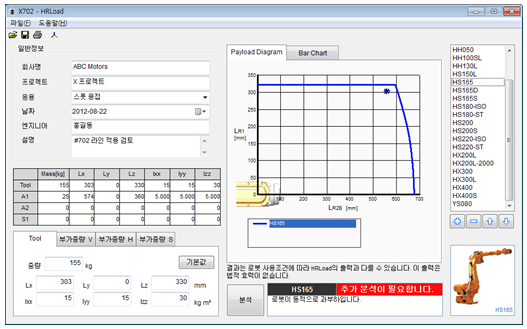

HRLoad​

This is a utility software for PC that informs the presence of overload by inputting the weight of the tool mounted on the robot, the position of the center of gravity, and the moment of the inertia.

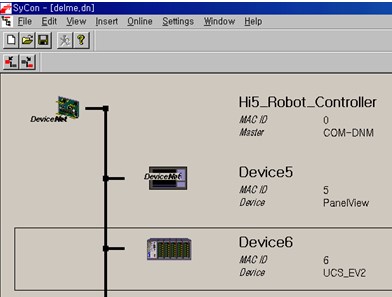

SYCON​

This is PC software for creating and editing fieldbus network configurations..

Xpanel​

Xpanel is TP's built-in HMI (Human Machine Interface) software.

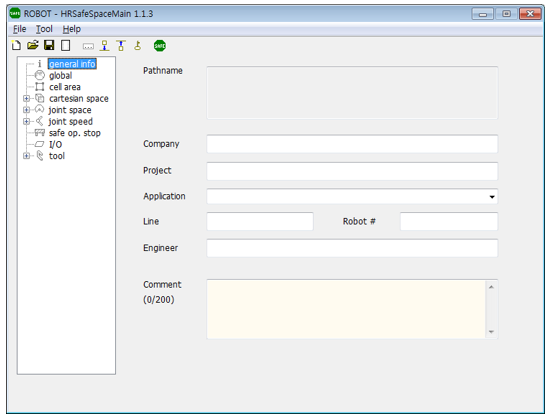

HRSafeSpace​

This is PC software that downloads/uploads parameters through SafeSpace module and Ethernet communication.

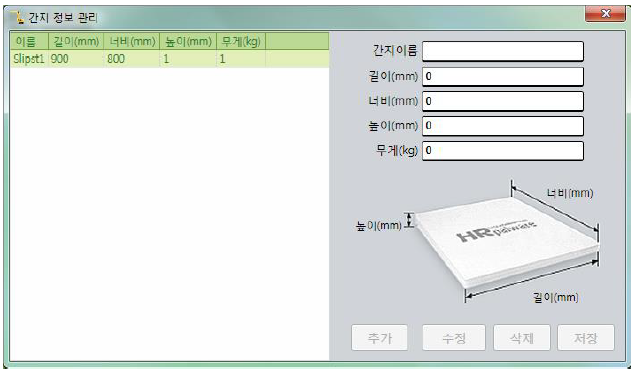

HRpal​

This is PC software that automatically creates robot palletizing loading patterns and job programs for quick installation and test run review.

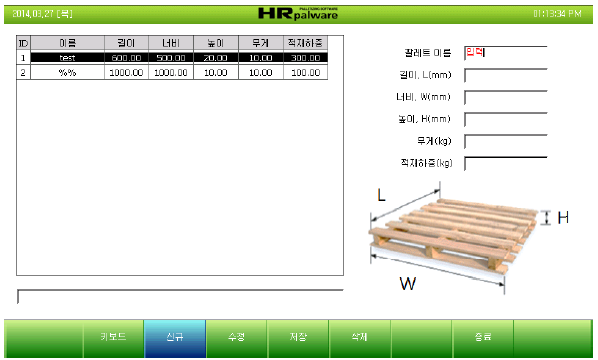

HRpalware​

This is a TP applet that automatically creates robot palletizing loading patterns and job programs for quick installation and test run review.

HRRpc library​

This is a DLL library for remote monitoring or control of Hi5, Hi5a controllers. (For developers)

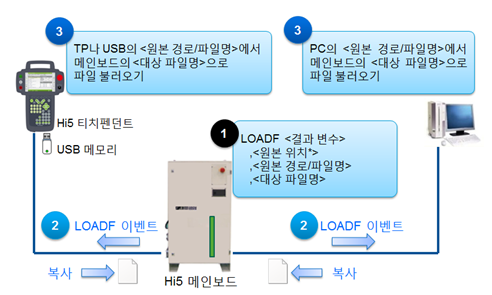

HRFileServer​

This is a remote file server program for PC that responds to LOADF/SAVEF statements of the Hi5 controller.

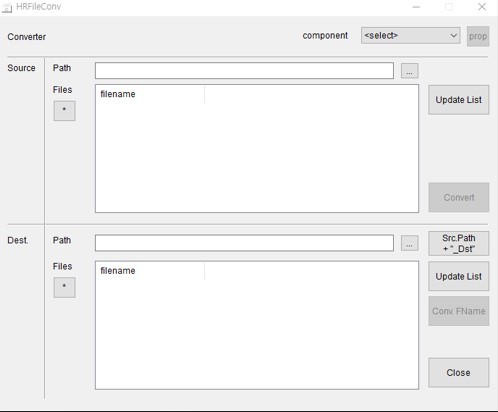

HRFileConv​

This is a PC program that converts the job program of the Hi4 controller to that of the Hi5 controller.
